Product center Product center
nACS
Products
Home > Products > ACS AGV Charger
nACS
Model: nACS
nACS
Product Introduction

Main Characters

● Charging station is integrated mechanism, fast and convenient  installation (also split type; ACS has no telescopic telescopic mechanism)

● Third party equipment installation space is reserved to provide system access capability.

● The modular design can be applied to all kinds of AGV solutions.

● With short circuits, over-voltage, over-current, over temperature and other protection functions

● It has both automatic charging and manual charging functions. ( It is strictly prohibited to reverse the connection during forced charging)

● With dry contact, can, Ethernet, Rs485, Wifi and other communication interfaces(0ptional, according to customer requirements).

● The management background can query the real-time data of charger through CAN, RS485, Wifi and other data interfaces ( Optional accordina to customer requirements ),

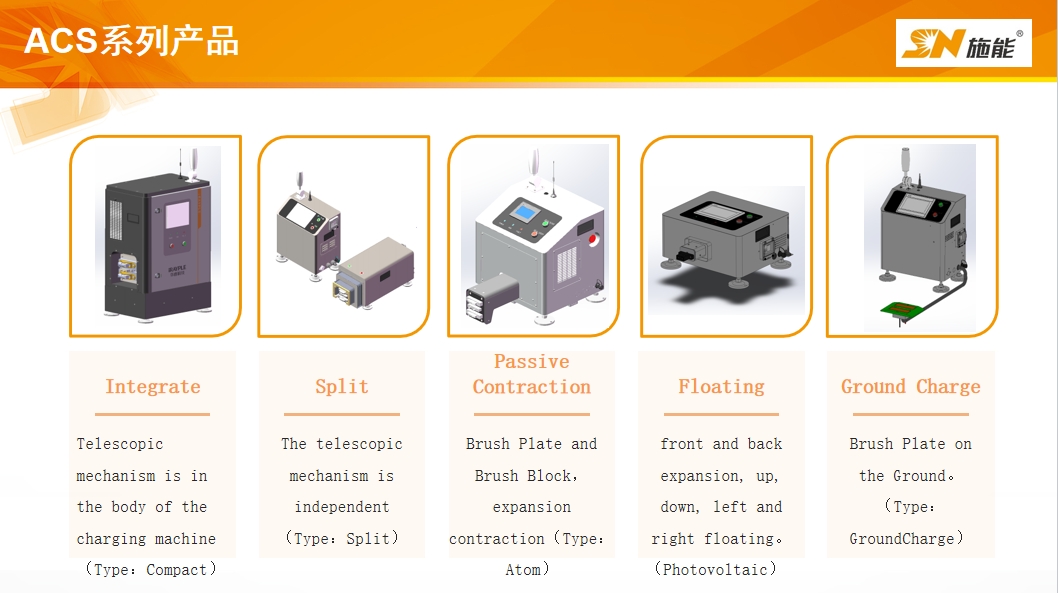

● There are 5 Types for Active expansion and passive expansion. 1: telescopic mechanism is in the body of the charging machine, 2:The telescopic mechanism is independent, and the aircraft plug is used to connect the charger, 3:Passive Contraction. Brush Plate and Brush Block. 4: The docking mechanism has the functions of front and back expansion, up, down, left and right floating. 5: Ground Charge

Production Specification



Main technical parameters

Type/Specification Rated input power
supply VHz
Charger input
curent A
Rated output
power
(kW)
Rated output
currentA
Rated output
voltage V
Communi
cation
  Mode
Ingress
protection
Size(mm) Woight(Kg)
iACS-D60V/100A
380
50/60Hz
9.8  6.0  100  60  CAN IP21 710x400x1263 60
iACS-E60V/50A 220
50/60Hz
15.7  3.0  50  60  CAN IP21 710x400x1263 72
iACS-E30VM00A 15.2  3.0  100  30  CAN IP21 710x400x1263 72
iACS-E60V/00A 31.3  6.0  100  60  CAN IP21 710x400x1263 72
iACS-D60V200A 380
50/60Hz
19.6  12.0  200  60  CAN IP21 722x500x1262 105
iACS-D100V/200A 32.7  20.0  200  100  CAN IP21 722x500x1262 130
sACS-E30V/200A 220
50/60Hz
30.3  6.0  200  30  CAN IP21 host:
710x400x1263
63
Side charging:
703x370x514
41
